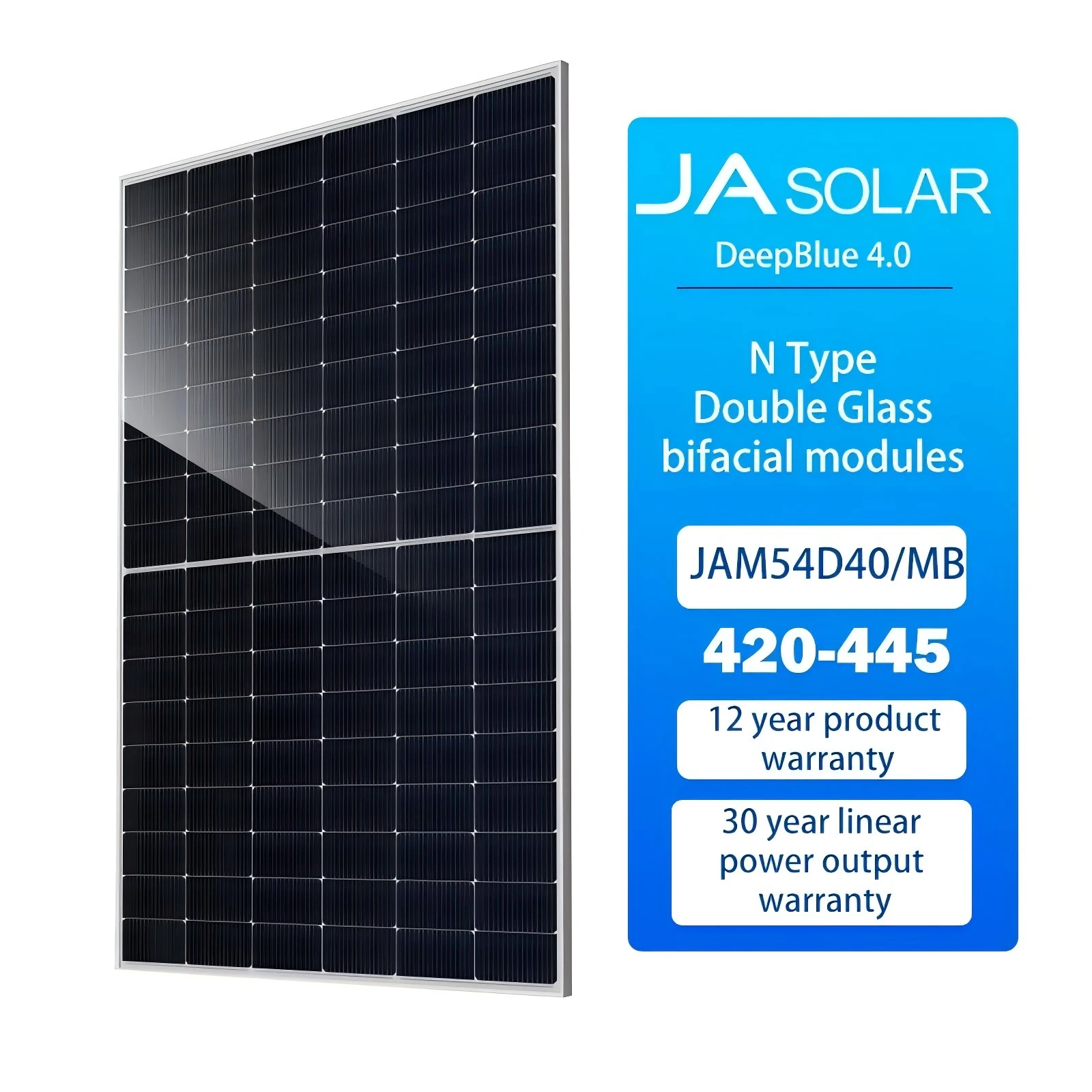

JA Solar JAM54D40MB
JA Solar JAM54D40MB

420W 425W 430W 435W 440W 445W JA Deepblue 4.0 Series n Type Double Glass Bifacial Modules, with higher power generation better LCOE, better temperature coefficient, lower LID and better low irradiance response.

sales2@artes-cn.com
86 19519910811


MECHANICAL DATA
CellMono
Weight21.5kg
Dimensions1722±2mm*1134±2mm*30±1mm
Cable Cross Section Size4mm²(IEC)，12 AWG(UL)
No. of cells108(6*18)
J-BoxIP68, 3 diodes
ConnectorQC 4.10-351/ MC4-EVO2A


ELECTRICAL DATE(STC)





Rated Maximum Power(Pmax)[W]420425430435440445
Power Tolerance0~+3%
Open Circuit Voltage(Voc) [V]38.2838.5638.8439.1139.3839.65
Maximum Power Voltage(Vmp) [V]32.3832.6432.8833.1333.3733.64
Short Circuit Current(lsc) [A]13.6513.713.7513.813.8513.9
Maximum Power Current(lmp) [A]12.9713.0213.0813.1313.1813.23
Module Efficiency[%]21.50%21.80%22.00%22.30%22.50%22.80%
