Growatt MID 40KTL3-X-Wuxi Artes New Energy Co., Ltd



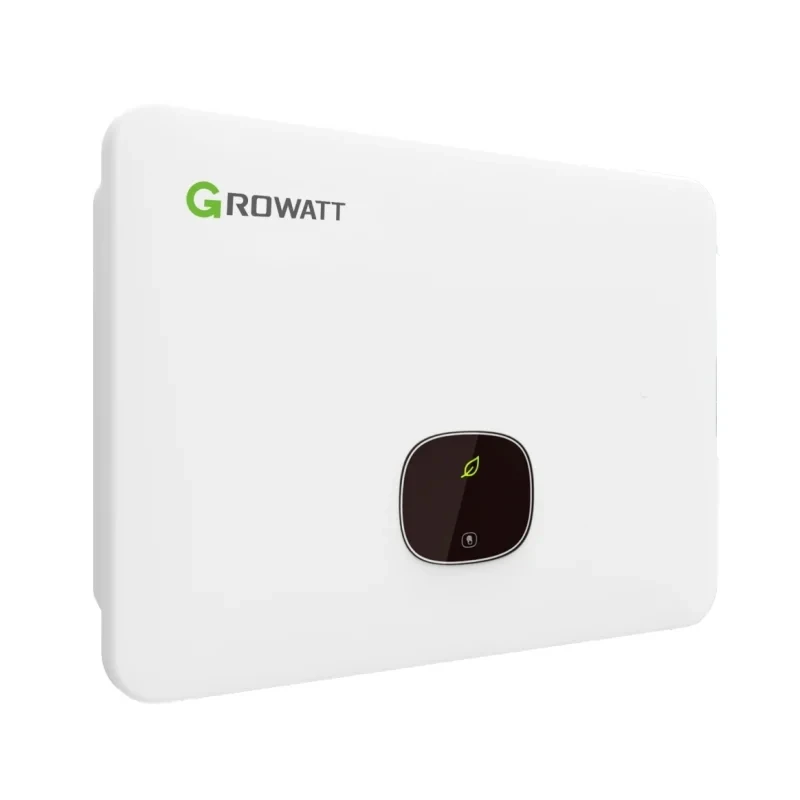

Growatt MID 40KTL3-X

The maximum efficiency is up to 98.8%
AFCl function ready
Self-consumption monitoring
Touch key and OLED display
Type ll SPD on DC and AC side

DATE	MID 25KTL3-X1	MID 30KTL3-X	MID 33KTL3-X	MID 36KTL3-X	MID 40KTL3-X
Dimensions(W/H/D)	580/435/230mm
Weight	29.5kg	29.5kg	29.5kg	30.5kg	30.5kg
Operating temperature range	-25℃…+60℃
Nighttime power consumption	<1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP66
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Cable gland + OT terminal
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB /WIFI/ GPRS / RF/ LAN	Yes/Yes/Optional/Optional/Optional/optional
Warranty: 5 years/ 10 years	Yes/Optional


