Growatt MIC 2500TL-X-Wuxi Artes New Energy Co., Ltd



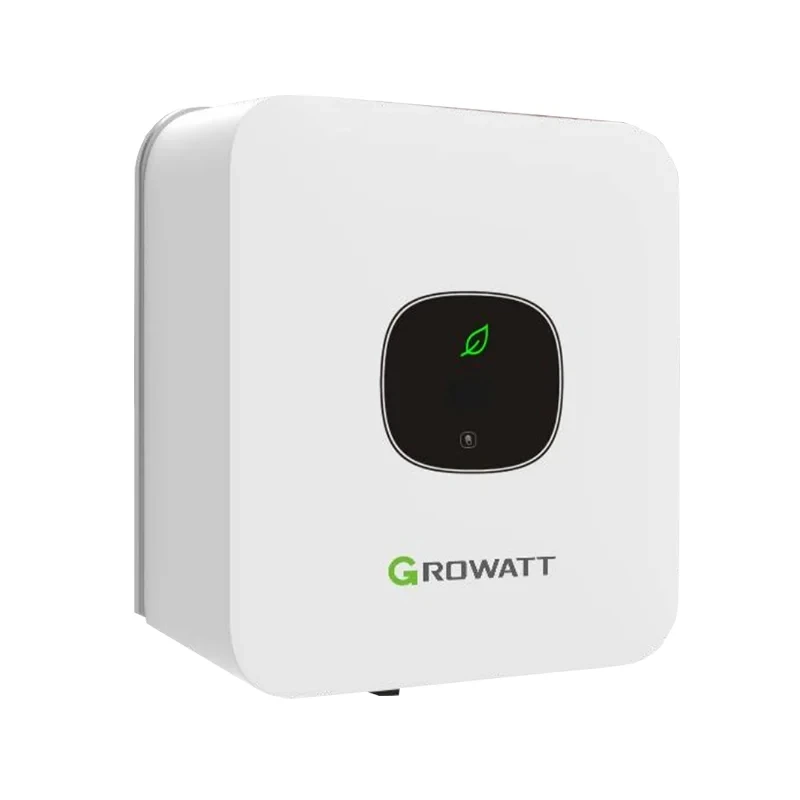

Growatt MIC 2500TL-X

The maximum efficiency is up to 98.8%
AFCl function ready
Self-consumption monitoring
Touch key and OLED display
Type ll SPD on DC and AC side

DATE	MIC 750TL-X	MIC 1000TL-X	MIC 1500TL-X	MIC 2000TL-X	MIC 2500TL-X MIC
Dimensions(W/H/D)	274/254/138mm
Weight	6kg	6kg	6kg	6kg	6.2kg
Operating temperature range	-25℃…+60℃
Nighttime power consumption	<0.5W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB /WIFI/ GPRS / RF/ LAN	Yes/Yes/Optional/Optional/Optional/optional
Warranty: 5 years/ 10 years	Yes/Optional


